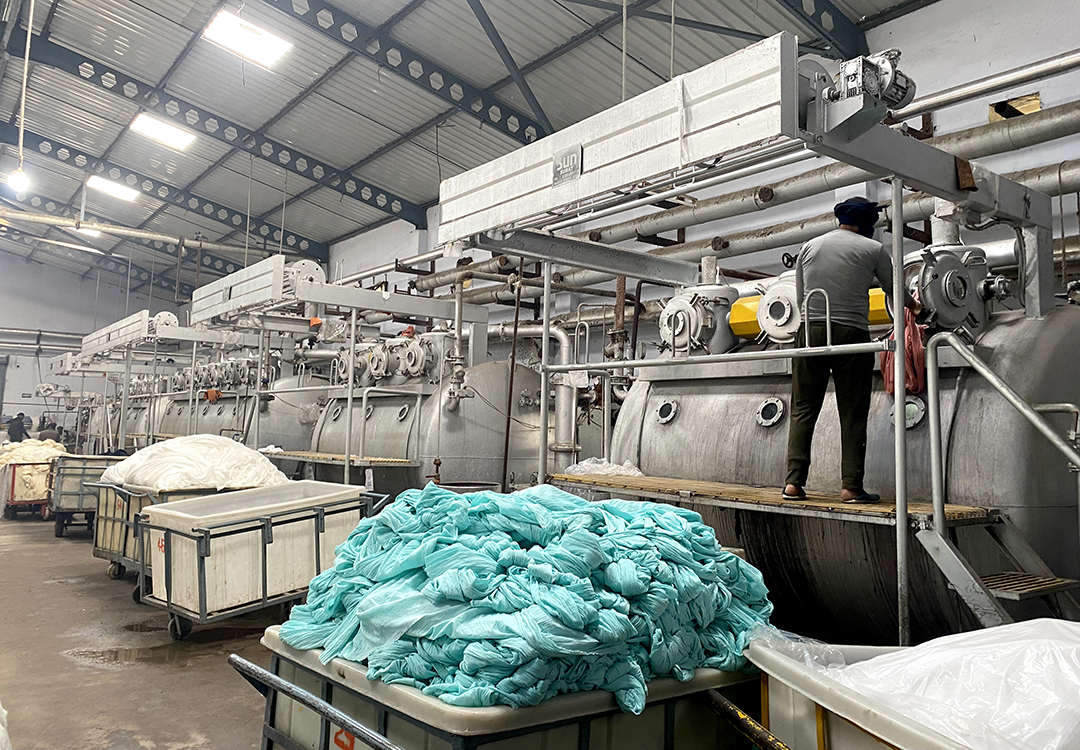

Soft Flow Dyeing Machine
Sun Twin Soft Flow is a major advancement in rope dyeing technology, which overcomes the main drawback of the U Jet or Long Tube Jet System by providing a significantly more gentle & relaxed dyeing atmosphere for the treatment of all type of fabrics with utmost flexibility and ease of operation.
By distributing the water flow simultaneously at two points along the fabric length, the natural declaration of the fabric is 100% compensated. Fabric speed up to 300 m/min at a maximum nozzle pressure of 0.15 bar creates superior fabric quality by eliminating pilling and cracking (crease) marks.
NSPH (Nominal Suction Positive Head) is required to work the pump at a minimum level so that it does not cavitate. Cavitation means pump will try to suck air if NSPH is not there and so will hamper your process performance.
Benefits
- Very low nozzle pressure.
- Quality - No cracking or edge curl.
- 100% increase in fabrics to liquor contacts.
- Low fabric speed, Low Tension.
- High speed elbow plaiting, No need to change nozzle.
- Large diameter nozzle.
- Individual Basket.
Advantages
- Outstanding fabric Quality No pilling, hairiness & edge curl.
- High productivity no unleveled dyeing.
- The leading technology for processing elmostmeric fabrics.
- “First time right" dyeing-guaranteed tangle free operation.
- All round versatility.
- Suitable for All Fabrics.
Technical Data
| Fabric loading cap. upto | kg. | 150 | 300 | 450 | 600 | 900 | 1200 | 1600 |
|---|---|---|---|---|---|---|---|---|
| No. of Tubes | Tubes | 1 | 2 | 3 | 4 | 6 | 8 | 8 |
| Pressure vessel diameter | MM | 2480 | 2480 | 2480 | 2480 | 2480 | 2480 | 2480 |
| Liquor ratio (1:5 to 1:6) | Liters | 750-900 | 1500-1800 | 2250-2700 | 3000-3600 | 4500-5400 | 6000-7200 | 6000-7200 |
| Connected Power | ||||||||
| Main pump motor | HP | 5 | 7.5 | 10 | 20 | 25 | 30 | 50 |
| Lifter reel motor | HP | 1x1 | 1.5x1 | 1x1/1.5x1 | 1.5x2 | 1.5x3 | 1.5x4 | 1.5x4 |
| Take of reel motor | HP | 1 | 1 | 1.5 | 2 | 1 x 3 | 2 x 2 | 2 x 2 |
| Pilling Motor | HP | 1 x 1 | 1 x 1 | 1 x 1 | 1 x 2 | 1 x 2 | 1 x 3 | 1 x 3 |
| Max. Working Temp. | °C | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Max. Working Pressure | kg/㎤ | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Heating time (average) 30°C - 130°C | Min | 30 | 30 | 45 | 60 | 75 | 90 | 105 |
| Cooling Tiem Average 130°C - 85°C | Min | 15 | 15 | 20 | 40 | 45 | 60 | 75 |
| Steam Pressure Required | kg/㎤ | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Water Pressure Required | kg/㎤ | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Fabric Speed Upto | mtrs/min | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
