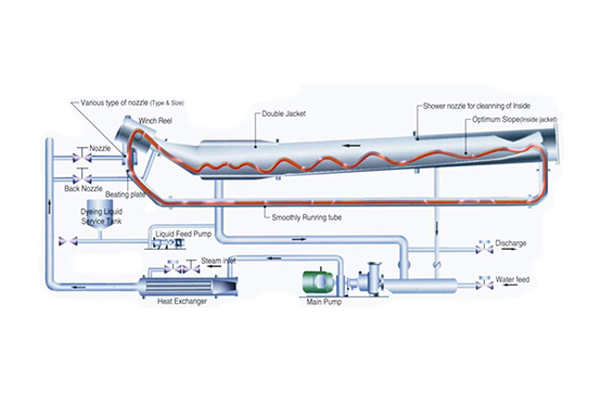

Long Jet Dyeing Machine
HI - Tech Turbo Long Tube Jet Dyeing Machine is suitable for most of the fabrics in woven and knitted heavy GSM or right materials very sensitive to crease mark like polyester & micro fiber. Fabrics ranging from 60 to 750 gm/m, fabrics speed com be achieved up to 600 m/min. High efcient shell & tube heat exchanger ensures high temperature rise along with high fabrics speed ensures shortest dyeing cycle.
Sun Turbo long tube jet is accepted in the market for its high performance and capable to give almost 50% higher production RELAXING OF FABRICS. By the soft how conguration & nozzle action, false twist, high twist & micro denier synthetic fabrics can be relaxed.
Technical Data
| Fabric loading cap. upto | kg. | 150 | 200 | 150 x 2 | 200 x 2 |
|---|---|---|---|---|---|
| No. of Tubes | Tubes | 1 | 1 | 2 | 2 |
| Pressure vessel diameter | MM | 600 | 600 | 870 | 870 |
| Liquor ratio (1:5) | Liters | 750 | 1000 | 1500 | 2000 |
| Connected Power | |||||
| Main pump motor | HP | 20 | 20 | 25 | 25 |
| Lifter reel motor | HP | 1 | 1 | 2 | 2 |
| Take of reel motor | HP | 1 | 1 | 1 | 1 |
| Max. Working Temp. | °C | 135 | 135 | 135 | 135 |
| Max. Working Pressure | kg/㎤ | 3 | 3 | 3 | 3 |
| Heating time (average) 30°C - 130°C | Min | 40 | 45 | 50 | 60 |
| Cooling Tiem Average 130°C - 85°C | Min | 20 | 25 | 30 | 35 |
| Steam Pressure Required | kg/㎤ | 5 | 5 | 5 | 5 |
| Water Pressure Required | kg/㎤ | 1 | 1 | 1 | 1 |
| Fabric Speed Upto | mtrs/min | 550 | 550 | 550 | 550 |
